DTEN D7 55” Firmware v1.5.0 FAQ

OVERVIEW

The answers to our FAQ below may help with the new features of DTEN firmware v1.5.0 release.



DTEN ePTZ Function

The new firmware v1.5.0 for DTEN D7 55” has a new ePTZ-enabled Zoom Rooms function. (Note:  The functionality of the ePTZ will vary based on hardware.) If you do not see ePTZ-enabled Zoom Rooms, please contact support@dten.com.



How do I access this feature?

1. When in the meeting, click the Vertical Ellipsis (three dots) at the bottom right corner

1. Click Camera Control on the pop-up menu to open up ePTZ-enabled Zoom Rooms (see below)

1. This will pull up the Camera Control, Intelligent Zoom, and Preset options - each is explained in more detail below.



This feature has the following hardware/ software version dependencies:



Dependencies	Requirement
DTEN Software Dependencies	DTEN 1.5.0
DTEN Hardware Dependencies	NO
Zoom Room Dependencies	NO



Zoom Rooms Presets

Note: Setting Presets may require the Zoom Room Passcode:

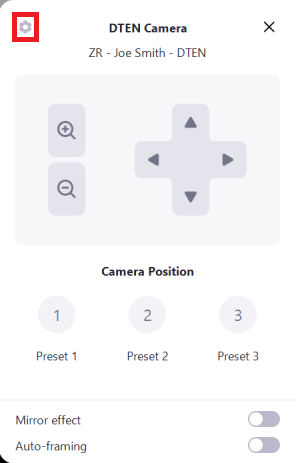

1. To set the system presets press the Gear in the upper left of the camera controls.  This may ask for the Zoom Room passcode set on the device in the Zoom admin portal.

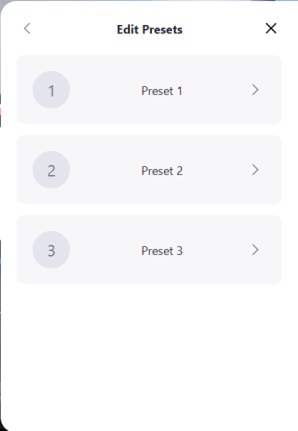

2. Next, select the preset you would like to adjust.

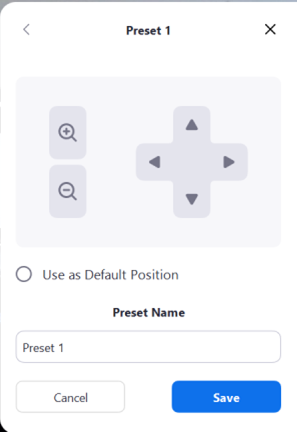

3. From there you can use the camera controls to change and set the view of the camera on the DTEN.  Select the default position view when the system starts up. You will also have the ability to edit the name of the preset (i.e. Back of Table, Whiteboard, etc).

This feature has the following hardware/ software version dependencies:

Dependencies	Requirement
DTEN Software Dependencies	DTEN 1.5.0
DTEN Hardware Dependencies	NO
Zoom Room Dependencies	NO

Wider View

DTEN v1.5.0 increases the camera view to 120-degree. There is no configuration required to enable a wider view.

This feature has the following hardware/ software version dependencies:

Dependencies	Requirement
DTEN Software Dependencies	DTEN 1.5.0
DTEN Hardware Dependencies	YES. Only the AV bar with yellow label will support this 120-degree wider view. AV bars with white labels do not support this wide view feature. Please contact DTEN Support if you need further assistance.
Zoom Room Dependencies	NO

Intelligent Zoom

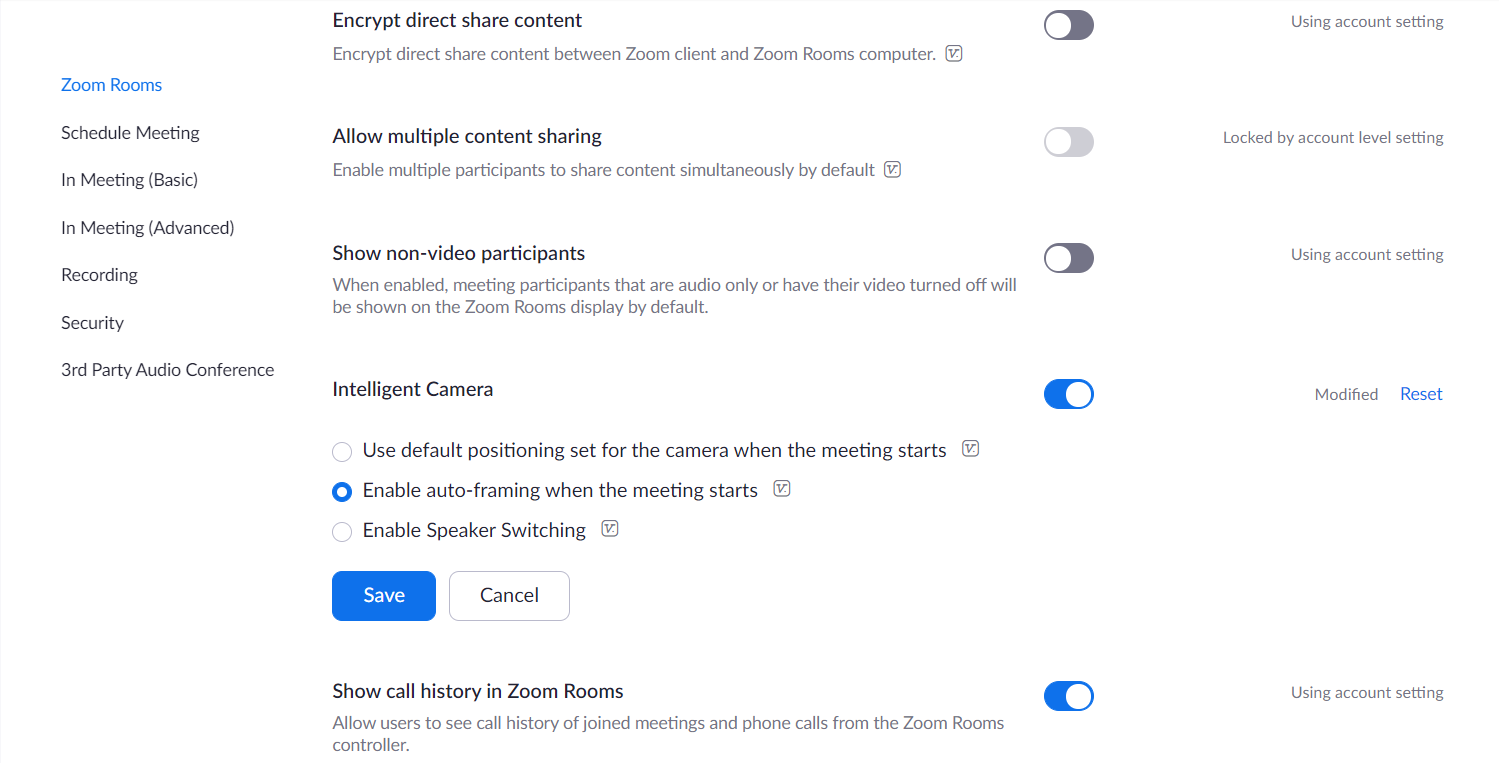

 Prerequisite: log into Zoom room > Select the room > Edit > Intelligent Camera > and select “enable Intelligent Zoom when the meeting starts” in Intelligent camera.

• Video demonstration of how auto framing works during a meeting:  HERE

Note: It might take 24 hours for the setting to take effect. If you do not see this in your D7 after the firmware update, please contact DTEN Support and be ready to provide a picture, SN number, and DTEN ID.

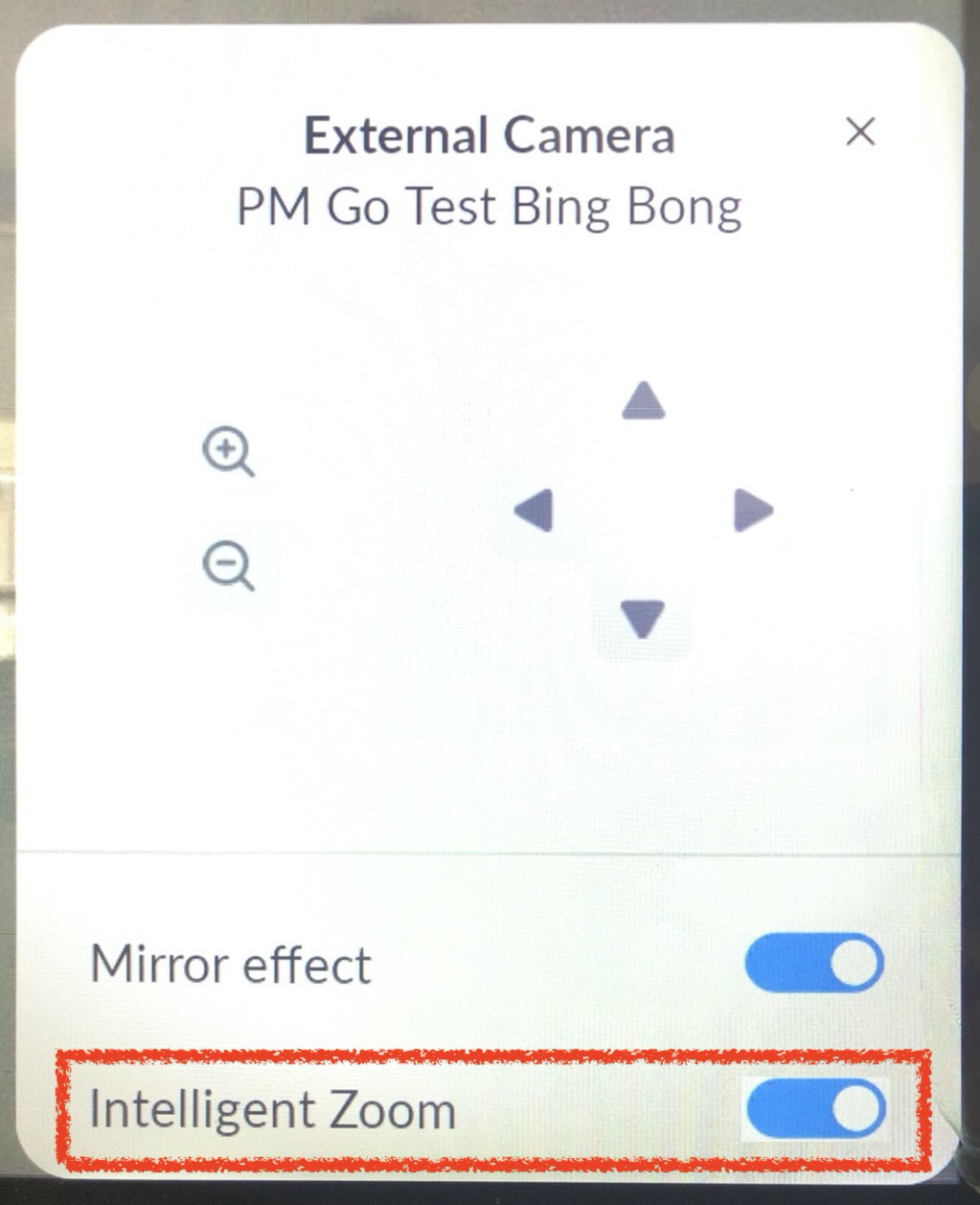

Known Issue:  Currently, the Intelligent Zoom setting in the Zoom Rooms menu on the D7 system does not switch this feature off (see above screenshot highlighted by red square).  Please use the ZDM Zoom Rooms settings to enable or disable Intelligent Zoom for that specific D7 system. A fix for this will be available in the next firmware update.



This feature has the following hardware/ software version dependencies:

Dependencies	Requirement
DTEN Software Dependencies	DTEN 1.5.0
DTEN Hardware Dependencies	NO
Zoom Room Dependencies	NO

If you have additional questions or need to contact DTEN Support, please refer to this DTEN Knowledge Base article for more details:  HERE.
