Overview

Experiencing blurry visuals and disjointed communication during remote meetings can be incredibly frustrating. The Vue Pro 4K cameras are designed to revolutionize your experience with innovative features. It includes Smart Framing(Only in the Teams platform ) or Multi-Stream(Only in the Zoom Platform) technology and four strategically placed cameras – long and short-range – on either side of the DTEN D7X device. This unique setup ensures exceptional clarity for every participant, capturing them in detail and maintaining a smooth video feed throughout the meeting. The Vue Pro fosters a more engaging and productive environment by eliminating visibility issues, ultimately promoting better collaboration among remote teams.



Supporting Product

• DTEN D7X Android
• DTEN Vue Pro



Prerequisite

• D7X Android 1.5.7  Teams Rooms/Zoom Rooms
• MTRA Version: 1449/1.0.96.2023060802  (2023 U1C MS release note)
• Zoom Rooms min Version: 5.17.0.4245



Use Case

In today's remote work environment, seamless video conferencing is crucial for effective communication. Traditional systems often struggle with blurry visuals, poor visibility, and complicated setups. The Vue Pro changes this with Smart Framing or Multi-Stream technology and four cameras, ensuring clear, uninterrupted video for all participants. It automatically frames you perfectly, enhancing engagement and understanding by ensuring everyone is visible. The Vue Pro is easy to set up with its plug-and-play design, allowing you to start high-definition video conferences with just a click. This makes remote meetings more immersive and interactive, improving collaboration and communication for greater success in the dynamic remote work landscape.





Setup Instruction



Step-by-step instructions

On the Teams Room Platform

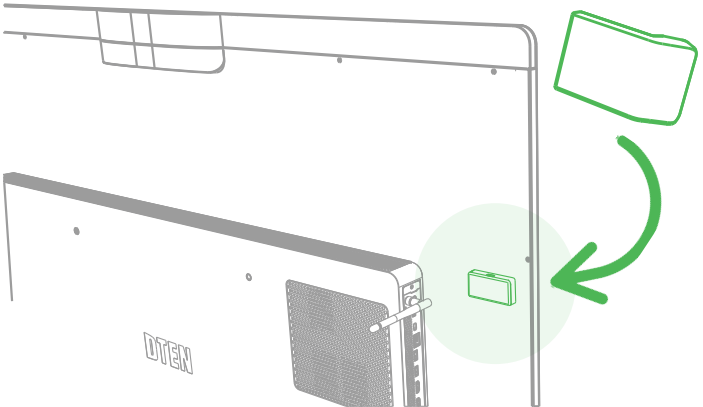

1. Insert the Vue Pro:
   • Connect the Vue Pro cameras to the D7X Android device.



If your D7X device does not have Vue Pro camera mounts:

Scan the QR code inside the box or visit https://guide.dten.com/dten_vue_pro to install the bracket and cameras to your D7X devices.

2. Access Menu Settings:
   • On the Teams Room homepage, press the Menu hard button at the lower back of the D7X Android device.
3. Navigate to Device Settings:

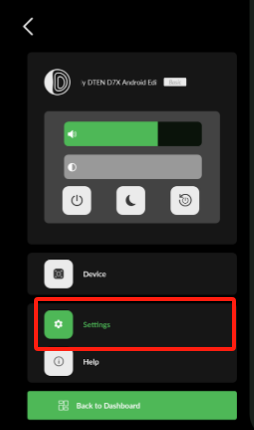

   • Select "Settings" from the menu options.





4. Enable Smart Framing:
   • Choose "Camera Control" and enable the "Smart Framing" feature.





On the Zoom Room Platform

1. Insert the Vue Pro:
   • Connect the Vue Pro camera to the D7X Android device.



If your D7X device does not have Vue Pro camera mounts:



Scan the QR code inside the box or visit https://guide.dten.com/dten_vue_pro to install the bracket and cameras to your D7X devices.

2. Start a Zoom meeting

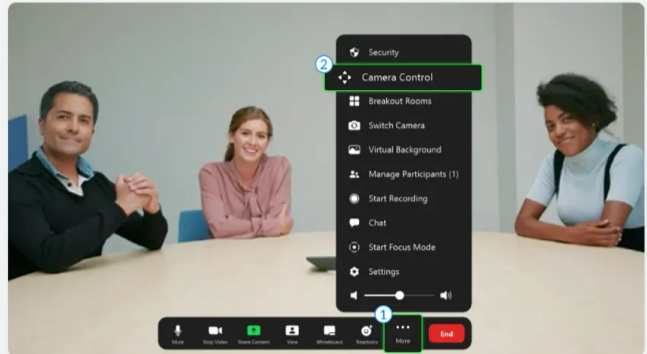

3. Click the toolbar in the Zoom meeting  and select the Camera Control

① Select the More

② Select the Camera Control

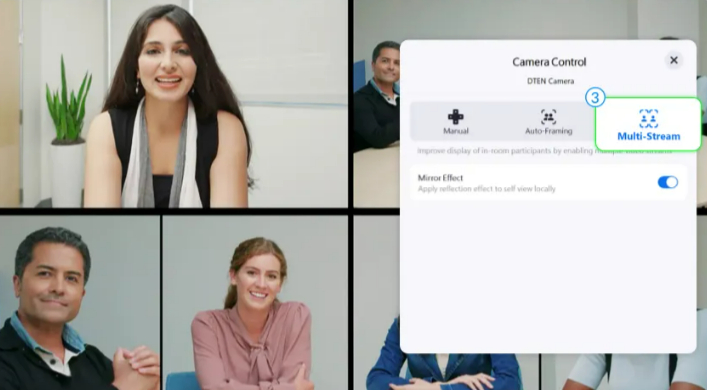

③ Enable the Multi-Stream









Experience Vue Pro in meeting

You can now experience Vue Pro's Multi-Steam Effect in Zoom or Teams meetings, where each participant will be displayed in separate frames and windows.

Note: On Zoom Rooms, you can still use the Multi-Stream feature if you do not have a Vue Pro. The system will use the D7X Android primary camera for the video.



If you have additional questions or need to contact DTEN Support, please refer to this DTEN Knowledge Base article for more details:  HERE.
