How to Configure Proxy Settings on DTEN Dashboard

Overview

This article provides instructions on how to set proxy settings on your DTEN (Android-based) devices.

Prerequisites

DTEN recommends customers to update their device firmware to the latest version. The minimum DTEN firmware versions to support Proxy settings in the DTEN Dashboard are listed below.

• DTEN ON - FW version 1.3.4
• DTEN ME/ ME PRO - FW version 1.9.2
• DTEN GO w/ DTEN MATE - FW version 1.9.2

 To Access the Proxy Settings

• Go to DTEN Dashboard | Settings, and click Proxy Settings (Figure 1).

The Proxy Settings section will expand with the default setting “None” (Figure 2, A).

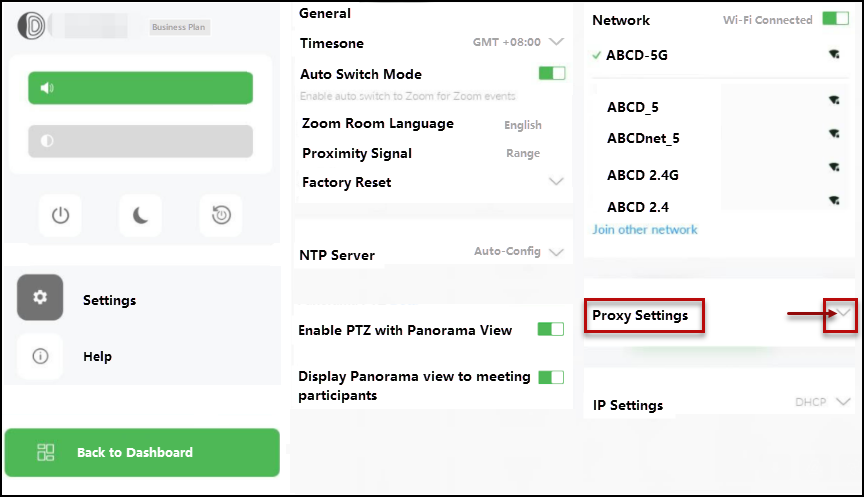

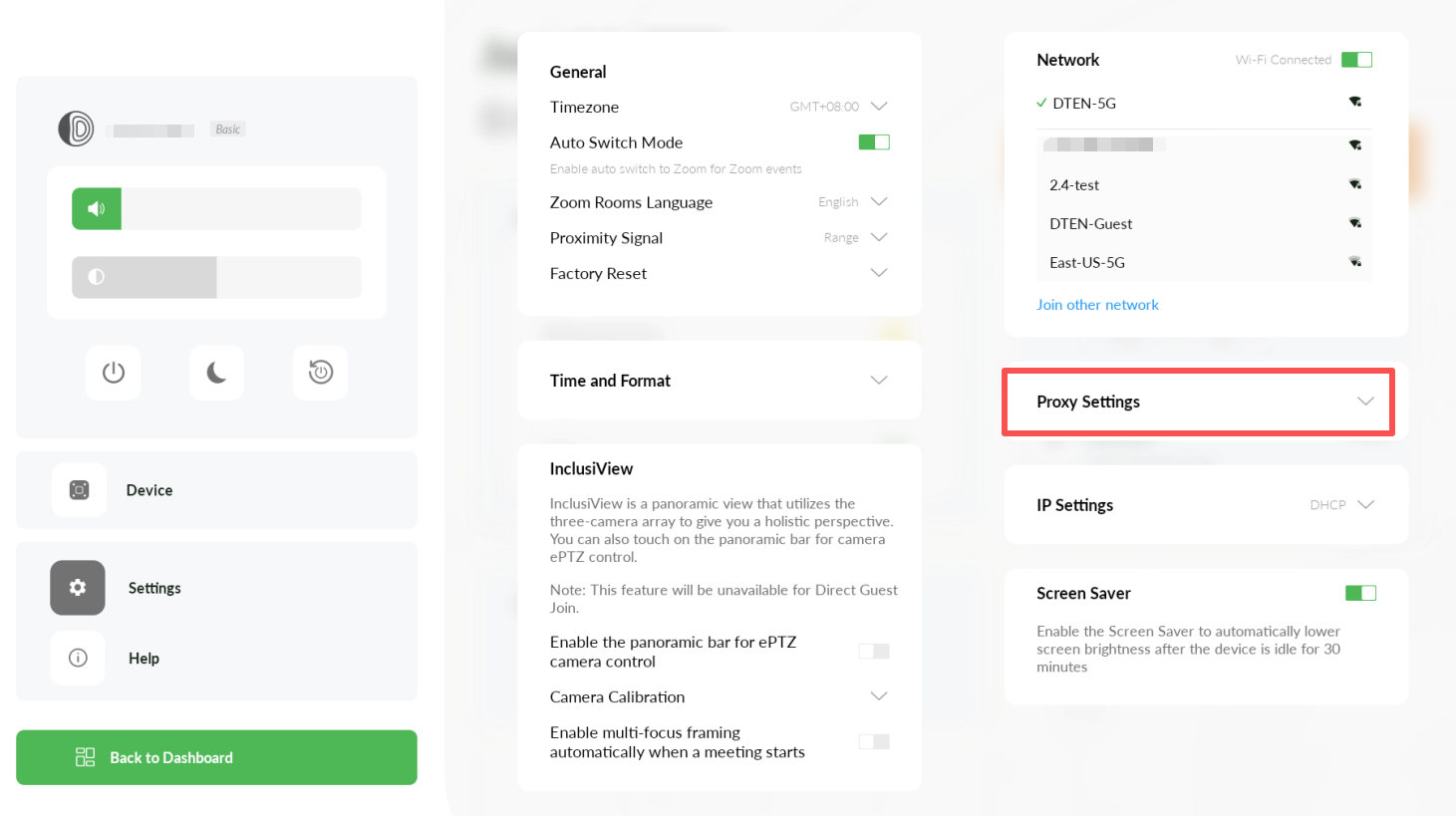

Figure 1. DTEN Dashboard with Proxy Settings

To Enter Proxy Settings Manually:

1. Click the Manual option. (Figure 2, B).
2. Enter your Secure Web Proxy Server and port.  (Figure 2, D).

To Setup Auto-Config for the Proxy Settings

• Click the Auto-Config option and  enter the URL information.  (Figure 2, C).

Note: If your network administrator provided you with the address of an automatic proxy configuration (.pac) file, enter it in the Auto-Config input field.

To Bypass the Proxy Settings

• Click in the text box below the Bypass Proxy Settings for these Hosts & Domains option and enter the host and domain information for which you need to bypass the proxy settings.  (Figure 2, E).

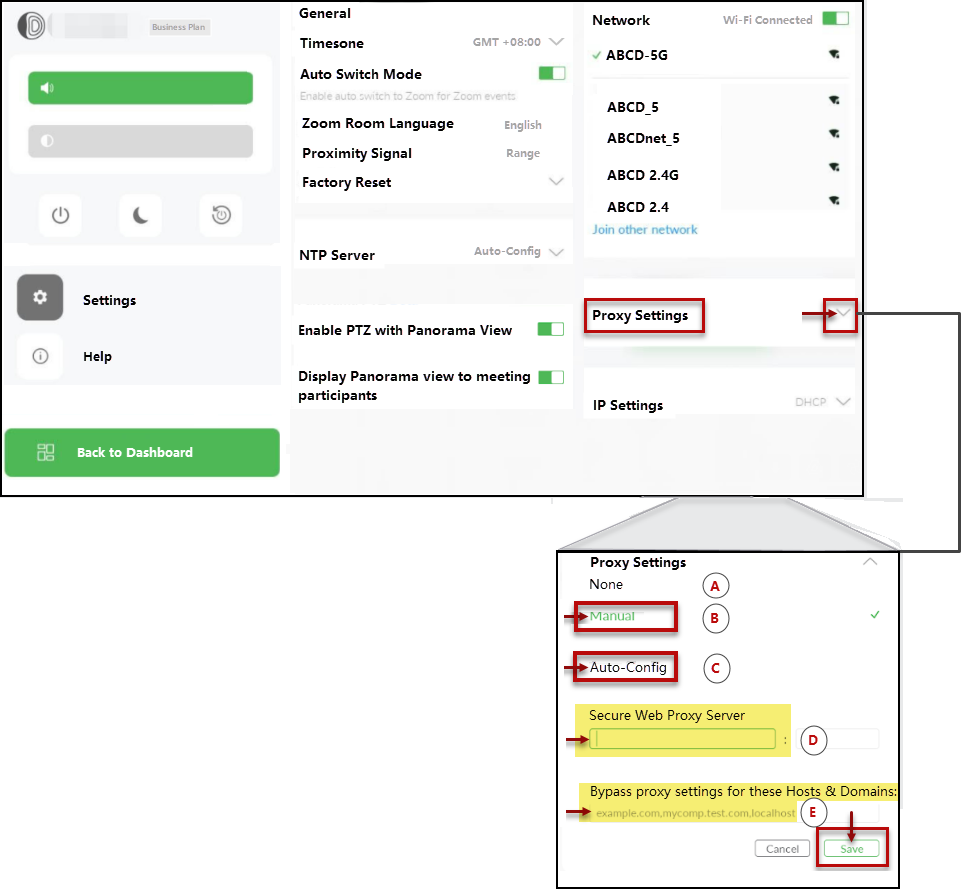

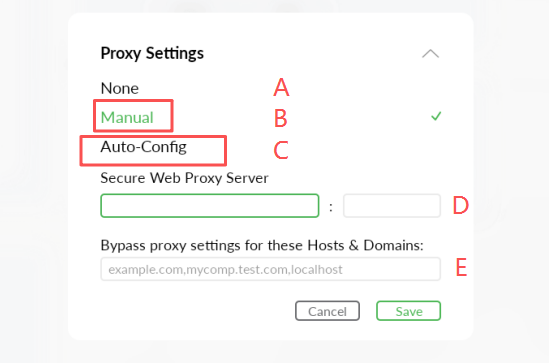

Figure 2. DTEN Proxy Setting Options

If you have additional questions or need to contact DTEN Support, please refer to this DTEN Knowledge Base article for more details:  HERE.
